| Type: |

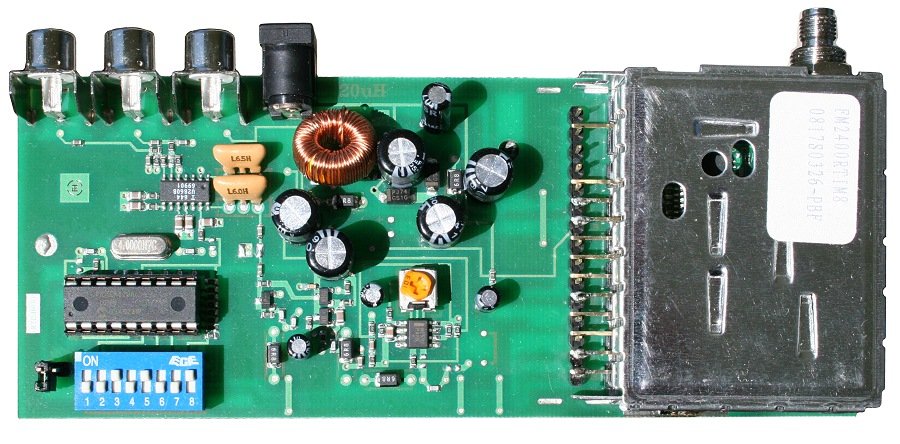

UHF video Receiver |
Frequency range
depending on setting: |
2300-2555 MHz (1 MHz steps)
2200-2710 MHz (2 MHz steps)
(With DTECH custom PIC MCU) |
| Modes: |
FM-video. 6 and 6.5 MHz Audio sub-carriers |
| Voltage: |
12-15 VDC |
| Current Drain: |
Max 500 mA |
| Impedance: |
75 ohms, SMA |
| Dimensions (W*H*D): |
147*15*59 mm |
| Weight: |
85 gr |
| Manufactured: |
Taiwan, 2006-2009 (Discontinued) |
| Other: |
Demo board, ready to use. No de-emphasis.
New price 2009 in the UK: £41.00 |
| Related Documents: |
Tuner datasheet (541 KB)
Dip switch settings (1 MHz steps) (8 KB)
Dip switch settings (2 MHz steps) (7 KB) |
