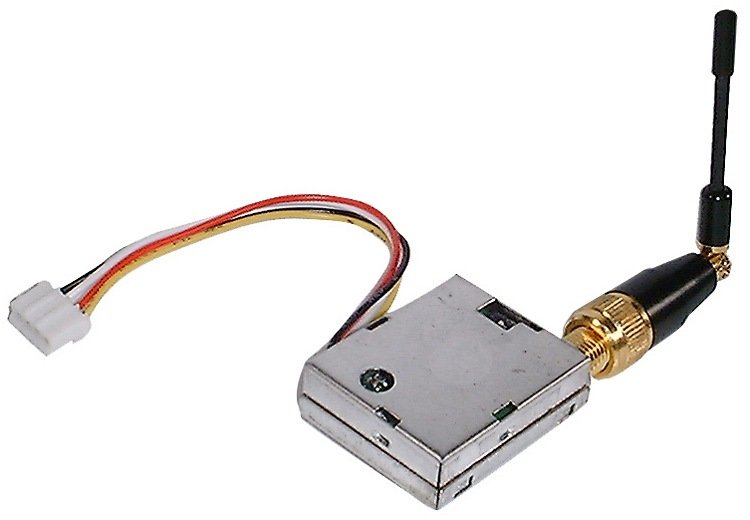

Misumi MST-AB003M
| Type: |
UHF video Transmitter |
| Frequency Range: |
2.4 GHz (4 channels)
Ch1: 2.413 GHz
Ch2: 2.432 GHz
Ch3: 2.451 GHz
Ch4: 2.470 GHz |
| Modes: |
FM-video. 5.5 MHz audio sub-carrier |
| RF Power Output: |
30 mW |
| Voltage: |
4.5-6 VDC |
| Current Drain: |
Max 90 mA |
| Impedance: |
50-75 ohms, SMA |
| Dimensions (W*H*D): |
24*9*29 mm |
| Weight: |
25 gr |
| Manufactured: |
200x-200x |
| Other: |
|
| Related Documents: |
|
|
