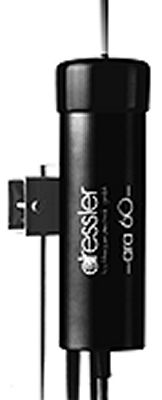

Dressler ARA-60
| Type: |
HF/VHF active Aerial |
| Band(s): |
0.04-60 MHz |
| Gain: |
10 dB (Noise figure: 3.5-5 dB) |
| Max power: |
RX only! |
| Impedance: |
50-75 ohms |
| Length: |
95 cm including whip |
| Weight: |
? Kg |
| Manufactured: |
199x-200x |
| Other: |
Requires 12.5 VDC @ 100 mA.
Will work up to about 120 MHz with 2-3 dB lower gain |
