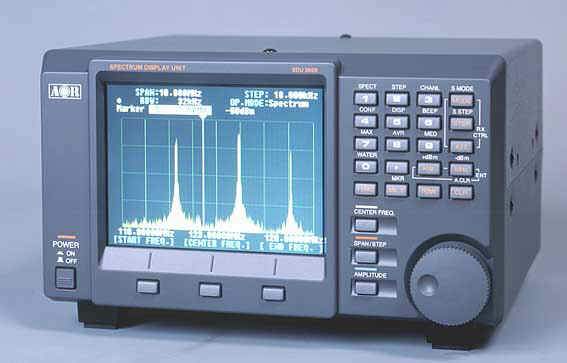

AOR SDU-5600
| Type: |
Spectrum Display Unit |
| Input Frequency: |
10.7 MHZ |
| Maximum frequency span: |
10 MHZ |
| Frequency accuracy: |
± 600Hz |
| Frequency resolution: |
4, 32, 64, 128 KHz |
| Input level Range: |
+0 dBm to -90dBm |
| Display dynamic range: |
60dBm |
| Frequency accuracy: |
+ / - 600Hz |
| Level accuracy: |
+ / - 2dB |
| Input impedance: |
50 ohms |
| Display: |
5 inch colour TFT display |

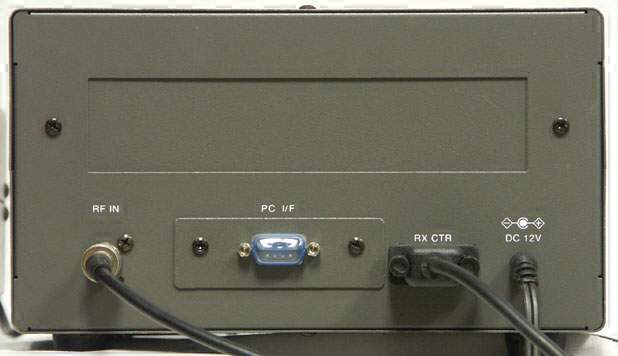

| Serial ports: |
2 RS-232C ports (for receiver and PC control) |
| Power requirement: |
12 V DC, 900mA (max) |
| Controls: |
26 keys and one rotating dial |
| Dimensions: |
220 (W) x 120 (H) x 195 (D) (mm)
8.7(W) x 4.7 (H) x 7.7 (D) (inches)
Projections not included |
| Compatibility: |
Interactive with all AOR AR5000 and AR8600
series receivers and AR-ONE.
May be compatible with other receivers that feature wideband 10.7 MHz IF output.
(No warranty is made as to compatibility with receivers from other manufacturers) |
| Level accuracy: |
+ / - 2dB |
| Other: |
|
| Related Documents: |
User Manual (1.00 MB)
Sales Leaflet (81.1 KB) |
  |
