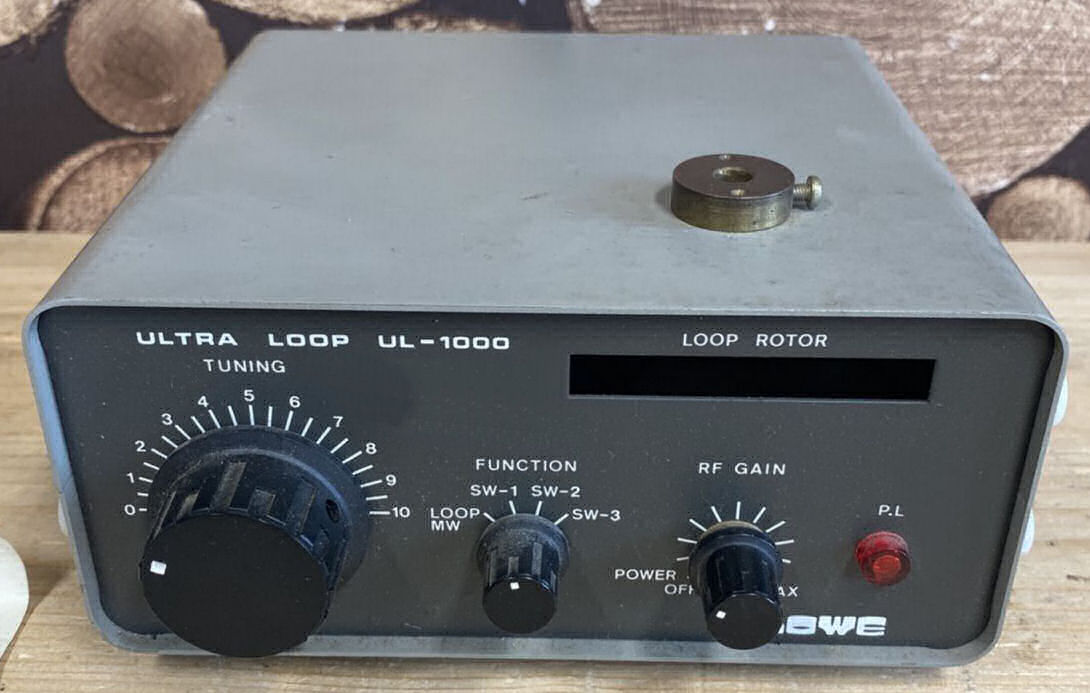

Lowe UL-1000 (Ultra Loop)
| Type: |
Ultra Loop |
| Frequency Range: |
MW: 500-1600 kHz
SW1: 1.6-4 MHz
SW2: 4-10 MHz
SW3: 10-30 MHz |
| Gain: |
10-20 dB Variable |
| Voltage: |
3VDC (2x UM-2 Batteries) |
| Current Drain: |
10 mA (approx) |
| Dimensions (W*H*D): |
152 x 67 x 146 mm |
| Weight: |
1 Kg |
| Manufactured: |
Japan: 19xx-19xx |
| Other: |
|
| Related Documents: |
|
 |
