| Type: |

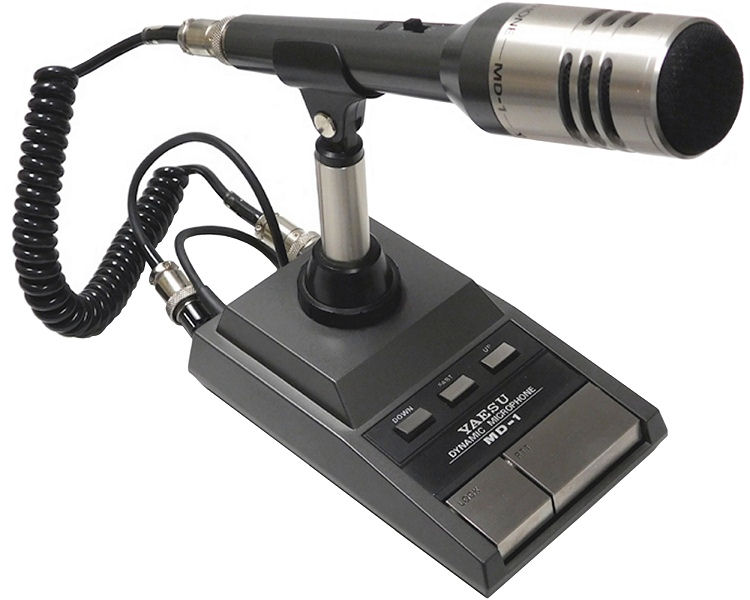

Dynamic Desk Microphone |
| Frequency Response: |
100 Hz to 15 KHz (-6 dB) |
| Output impedance: |
600 ohm or 50 Kohm (Switchable) |
| connector: |
8-pin (Female locking ring plug) |
| Voltage: |
|
| Current Drain: |
|
| Dimensions (W*H*D): |
Base: 98 x 160 x 165 mm (3.86 x 6.3 x 6.5 inches)
Mike: Length 210 mm (8.27 inches), Diameter 40.5 mm (1.59 inches) |
| Weight: |
1 Kg |
| Manufactured: |
Japan: 1982-198x (Discontinued) |
| Other: |
Up/down buttons and PTT lock switches
3-position audio tone response switch |
| Related Documents: |
Manual (93 kB)
|
| Applicable radios: |
FT-77
FT-102
FT-726R
FT-736MX
FT-736R
FT-747GX
FT-747SX
FT-757GX
FT-757GXII
FT-767GX
FT-980
| and possibly other transceivers...
|
