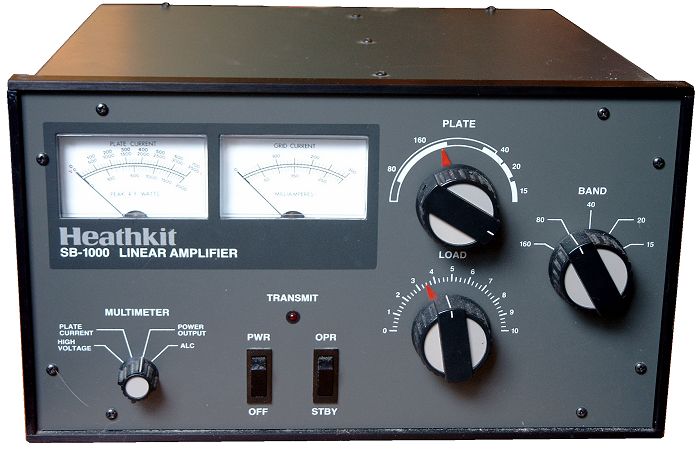

Heathkit SB-1000
| Type: |
Power Amplifier |
| Frequency Range: |
15-160 m |
| Voltage: |
Mains |
| Current Drain: |
Max 15 A @ 120 VAC
Max 7.5 A @ 240 VAC |
| Drive power: |
85-100 W |
| Maximum output power: |
SSB: 1 KW (PEP)
CW: 850 W |
| Dimensions (W*H*D): |
368*210*352 mm |
| Weight: |
21.8 Kg |
| Manufactured: |
197x-197x |
| Other: |
1 x 3-500Z |
