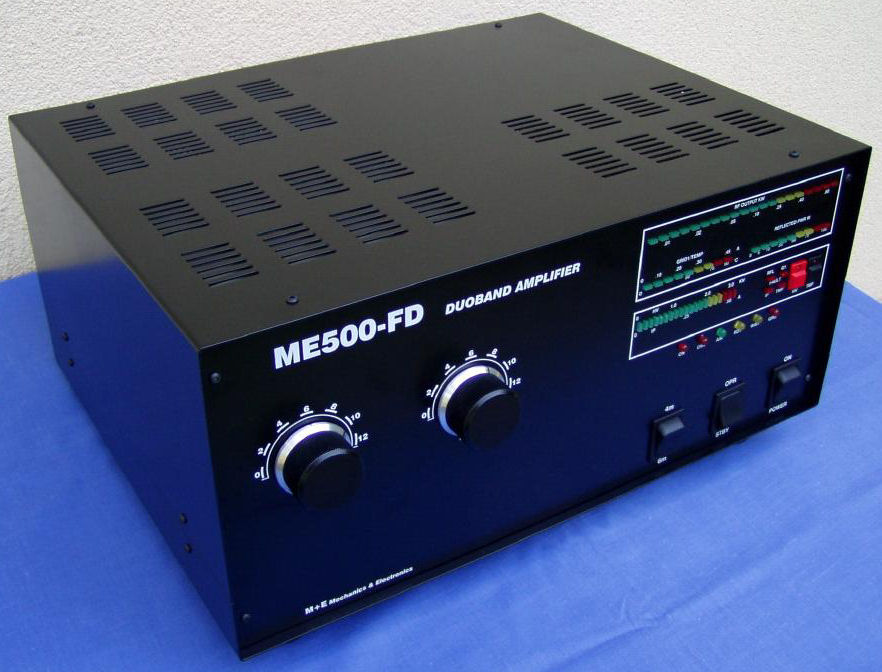

M+E Mechanics & Electronics ME500-FD (Duoband)
.jpg "M+E Mechanics & Electronics ME500-FD (Duoband)")
| Type: |
Linear Power Amplifier |
| Frequency Range: |
50-52 MHz & 70-72 MHz (Switchable) |
| Voltage: |
Mains: 220-240 VAC, 50-60 Hz, single phase |
| Current Drain: |
1300 VA |
| Drive power: |
30 W |
| Maximum output power: |
700W PEP or 500 W continuous carrier. |
| Dimensions (W*H*D): |
410 x 185 x 300 mm |
| Weight: |
25 Kg |
| Manufactured: |
Hungary: 20xx-2xxx (Discontinued) |
| Other: |
RF Gain: 12-13dB typically |
| Related Documents: |
Manual (159 kb) |
|
