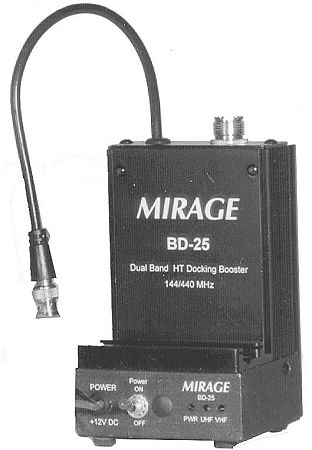

Mirage BD-25
| Type: |
Power Amplifier |
| Frequency Range: |
144-148 / 430-450 MHz |
| Voltage: |
13.8 VDC |
| Current Drain: |
Max 8 A |
| Drive power: |
1-5 W |
| Maximum output power: |
45 / 35 W |
| Dimensions (W*H*D): |
3.4 x 6 x 3.4" |
| Weight: |
1.5 Lbs |
| Manufactured: |
19xx-200x |
| Other: |
Full duplex (cross-band) possibility
New price 2003 in the US: $164.95 |
| Related Documents: |
User Manual (78 KB) |
|
