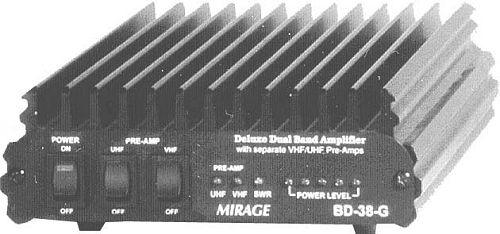

Mirage BD-38-G
| Type: |
Power Amplifier |
| Frequency Range: |
144-148 / 430-450 MHz |
| Voltage: |
13.8 VDC |
| Current Drain: |
Max 15 A |
| Drive power: |
0.25-5 W |
| Maximum output power: |
80 / 60 W |
| Dimensions (W*H*D): |
6.5 x 2.5 x 9" |
| Weight: |
? Kg |
| Manufactured: |
19xx-200x |
| Other: |
GaAs-FET preamps. Full duplex (cross-band) possibility
New price 2003 in the US: $349.95 |
| Related Documents: |
User Manual (169 KB) |
|
