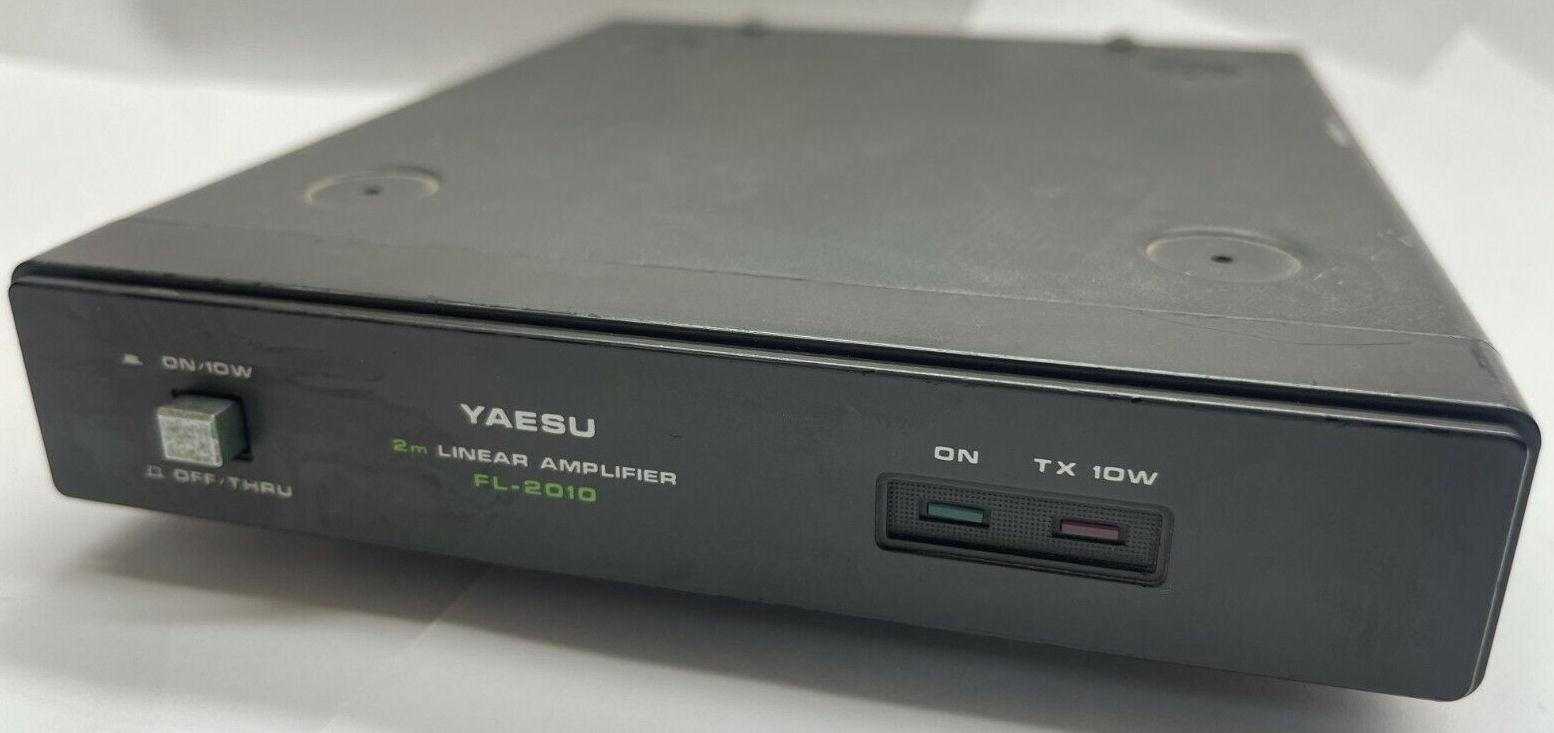

Yaesu FL-2010
| Type: |
Power Amplifier |
| Frequency Range: |
144-148 MHz |
| Voltage: |
13.8 VDC (12.4V-15.2V) |
| Current Drain: |
Max 3 A @ 10 W output |
| Drive power: |
Max 3 W |
| Maximum Power output: |
10 W |
| Impedance: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
150 x 30 x 170 mm |
| Weight: |
700 gr |
| Manufactured: |
Japan, 198x-198x |
| Other: |
|
| Related Documents: |
User Manual (3.8 MB) |
 |
