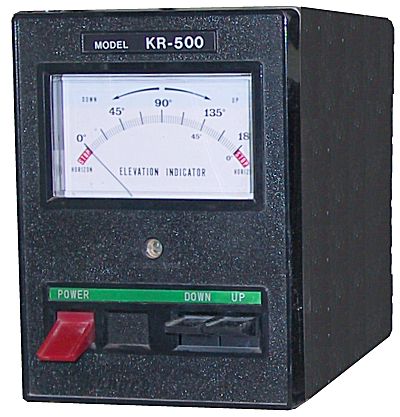

Kenpro KR-500
| Type: |
Elevation rotator |
| Voltage: |
Mains |
| Power consumption: |
30 VA |
| Motor voltage: |
24 VAC |
| 180° rotation time: |
61 seconds |
| Rotation torque: |
400 Kg/cm |
| Braking torque: |
2000 Kg/cm |
| Max wind load area: |
? |
| Max dead vertical weight: |
- |
| Control cable: |
6 conductors, #22 AWG or better |
| Mast diameter: |
38-63 mm (Boom: 32-43 mm) |
| Dimensions (W*H*D): |
? mm |
| Weight: |
Rotator: 3.3 Kg
Controller: 1.7 Kg |
| Manufactured: |
Japan, 19xx-19xx |
| Other: |
|
| Related Documents: |
User Manual (1.26 MB) |
 |
