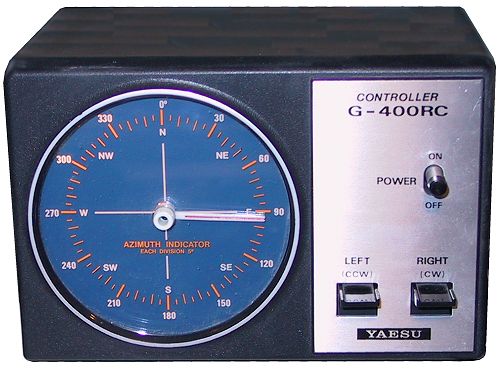

Yaesu G-400RC
| Type: |
Azimuth rotator |
| Voltage: |
Mains |
| Power consumption: |
40 VA |
| Motor voltage: |
24 V, split phase |
| 360° rotation time: |
50 seconds |
| Rotation torque: |
600 Kg/cm |
| Braking torque: |
2000 Kg/cm |
| Max wind load area: |
? |
| Max dead vertical weight: |
200 Kg |
| Control cable: |
5 conductors, #20 AWG or better |
| Mast diameter: |
38-63 mm |
| Dimensions (W*H*D): |
Controller: ? mm
Rotator: ? mm |
| Weight: |
Controller: 3.2 Kg
Rotator: 4.5 Kg |
| Manufactured: |
19xx-19xx |
| Other: |
360° readout |
| Related Documents: |
User Manual (2.00 MB) |
|
