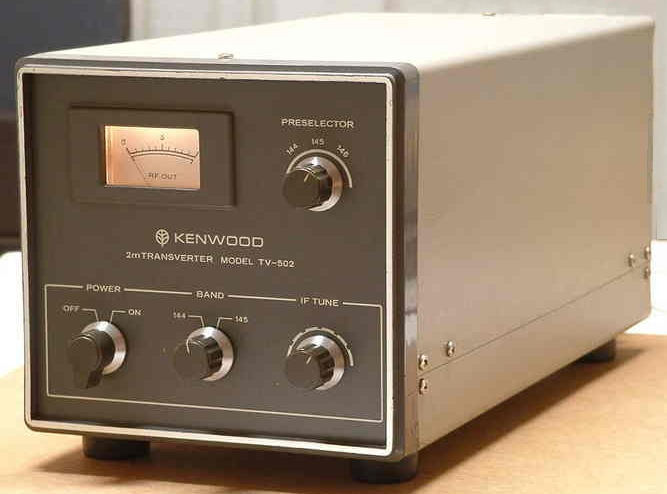

Kenwood TV-502
| Type: |
Amateur Transverter |
| Frequency Range: |
144-145.7 (Optional: 145-146) MHz |
| IF: |
28-29.7 MHz |
| Drive power: |
? W |
| RF power output: |
SSB/CW: 8 W |
| Voltage: |
13.8 VDC or Mains |
| Current Drain: |
Max ? A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
168 x 153 x 336 mm |
| Weight: |
5.2 Kg |
| Manufactured: |
Japan, 197x-197x |
| Other: |
|
| Related Documents: |
User Manual (2.60 MB) |
 |
