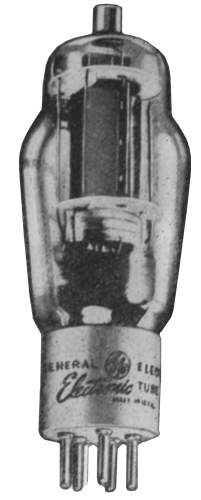

GL-807
| Type: |
Beam power amplifier |
| Frequency: |
60 MHz |
| Class: |
AB1 |
| Max power output: |
AM: 60 W, CW: 75 W |
| Drive power: |
? W |
| Heater voltage: |
6.3 V |
| Heater current: |
0.9 A |
| Plate voltage: |
AM: Max 600 V, CW: Max 750 V |
| Plate current: |
Max 100 mA |
| Plate dissipation: |
AM: Max 25 W, CW: Max 30 W |
| Screen voltage: |
Max ? V |
| Manufactured: |
General Electric / USA, 194x-19xx |
| Other: |
|
| Extras: |
|
|
