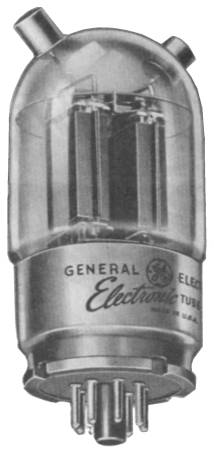

GL-815
| Type: |
Twin beam power tube |
| Frequency: |
125 MHz |
| Class: |
B |
| Max power output: |
CW: 75 W, AM: 60 W (both max input) |
| Drive power: |
CW: 0.2 W, AM: 0.2 W |
| Heater voltage: |
Parallel: 6.3 V, Series: 12.6 V |
| Heater current: |
Parallel: 1.6 A, Series: 0.8 A |
| Plate voltage: |
400 V |
| Plate current: |
150 mA |
| Plate dissipation: |
? W |
| Screen voltage: |
175 V |
| Manufactured: |
194x-19xx |
| Other: |
Either half of the tube can be used separately, but common
practice is to employ this tube in push-pull as a final-stage amplifier. |
