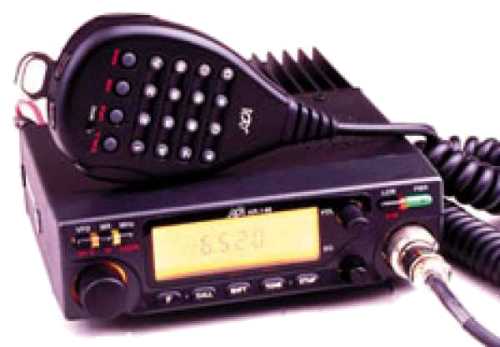

ADI AR-146
| Type: |
Amateur VHF transceiver |
| TX Frequency Range: |
144-148 MHz |
| RX Frequency Range: |
118-180 MHz |
| RF Power output: |
Hi: 60 W
Lo: ? W |
| Mode: |
AM/FM |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: Max 500 mA
TX: Max 12 A |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
? mm |
| Weight: |
? gr |
| Manufactured: |
19xx-19xx |
| Other: |
To extend the transmit frequency range from
144-148 MHz to 130-180 mHz
remove the bottom cover (2 screws) and cut the jumper wire
The wire is very obvious
To convert back just reconnect the jumper. |
