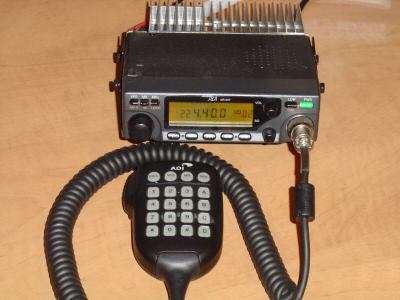

ADI AR-247
| Type: |
Amateur VHF transceiver |
| Frequency Range: |
TX: 222-225 MHz
RX: 219-228 MHz |
| Mode: |
FM |
| RF Power output: |
Hi: 30 W
Lo: ? W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
11-15.8 VDC |
| Current Drain: |
RX: Max 500 mA
TX: Max 8 A |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
? mm |
| Weight: |
? gr |
| Manufactured: |
19xx-19xx |
| Other: |
|
