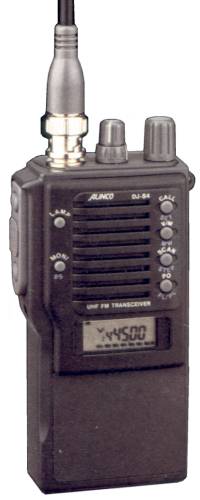

| Type: | Amateur UHF Transceiver |
| Frequency Range: | TX: 440-450 MHz RX: 430-460 MHz |
| Modes: | FM |
| RF Power output: | Hi: 2-5 W (depending on voltage) Mid: 1 W Lo: 100 mW |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | ? VDC |
| Current Drain: | RX: Max ? mA TX: Max ? mA |
| Aerial Input: | 50 ohms, BNC |
| Dimensions (W*H*D): | 2.1*4.3*1.5 inches |
| Weight: | 13 oz (with DR-y battery case) |
| Manufactured: | 199x-199x |
| Other: | DTMF option |
