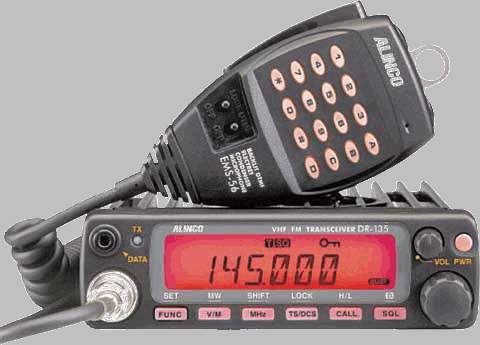

Alinco DR-135
| Type: |
Amateur VHF Transceiver |
| Frequency range: |
TX: 144-146 MHz
RX: 118-174 MHz
Steps: 5/8.33/10/12.5/15/20/25/30/50 KHz |
| Modes: |
TX: FM/NFM
RX: AM/FM/NFM |
| RF Power output: |
Hi: 50 W
Mid: 10 W
Lo: 5 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC +/- 15% |
| Current drain: |
RX: Max ? mA
TX: Max ? A |
| Impedance: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
142*40*174 mm |
| Weight: |
1.0 Kg |
| Manufactured: |
199x-2000 (discontinued) |
| Other: |
100 memories. CTCSS, DCS. GPS input for APRS.
1200/9600 bd packet (EJ-41U) and digital voice board options (requires
at least two similarly equipped radios) |
| Related documents: |
|
|
