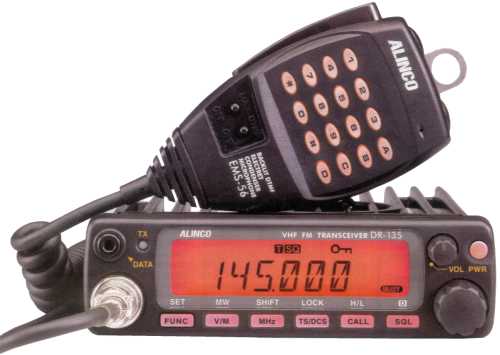

Alinco DR-135TP
| Type: |
Amateur VHF Transceiver |
| Frequency Range: |
TX: 144-148 MHz
RX: 118-174 MHz |
| Modes: |
TX: FM
RX: AM/FM |
| RF Power output: |
Hi: 50 W
Mid: 10 W
Lo: 5 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: Max 600 mA
TX: Max 11 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
142*40*174 mm |
| Weight: |
1.0 Kg |
| Manufactured: |
2000-200x |
| Other: |
100 memories. Built-in 1K2/9K6 TNC, GPS input for APRS
CTCSS, DCS. Theft alarm
Digital voice board option (requires at least two similarly
equipped radios) |
