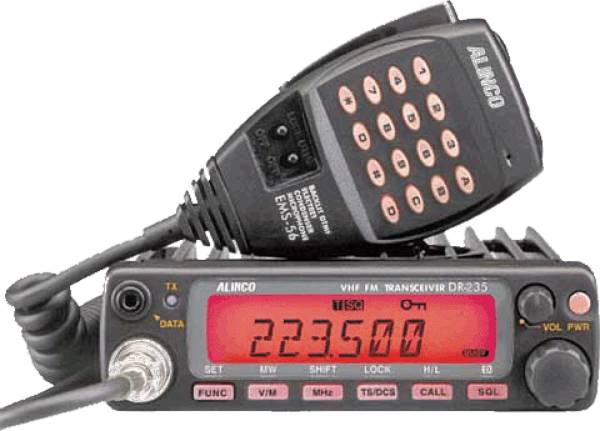

Alinco DR-235T
| Type: |
Amateur VHF Transceiver |
| Frequency Range: |
TX: 222-225 MHz
RX: 216-278 MHz |
| Modes: |
FM |
| RF Power output: |
Hi: 25 W
Mid: 10 W
Lo: 5 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: Max 600 mA
TX: Max 8 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
142*40*174 mm |
| Weight: |
1.0 Kg |
| Manufactured: |
2001-200x |
| Other: |
101 memories. CTCSS, DCS and DTMF
1K2/9K6 TNC option. Theft alarm
Digital voice board option (requires at least two
similarly equipped radios) |
| Related Documents: |
|
| Modifications: |
Frequency Expansion (14.6 KB) |
|
