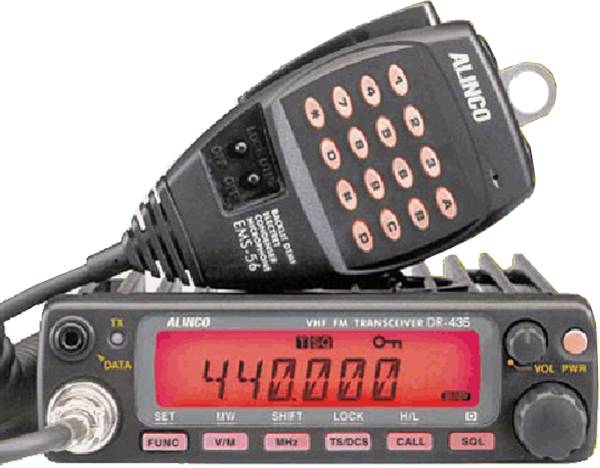

Alinco DR-435T
| Type: |
Amateur UHF Transceiver |
| Frequency Range: |
TX: 430-450 MHz
RX: 350-512 MHz |
| Modes: |
FM |
| RF Power output: |
Hi: 35 W
Mid: 10 W
Lo: 5 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
11.7-15.8 VDC |
| Current Drain: |
RX: 400-600 mA
TX: Max 10 A |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
142*40*174 mm |
| Weight: |
1 Kg |
| Manufactured: |
2001-200x |
| Other: |
100 memories. 1K2/9K6 TNC option, GPS input for APRS. CTCSS, DCS. Theft alarm.
Digital voice board option (requires at least two similarly equipped radios) |
| Related Documents: |
N/A |
|
