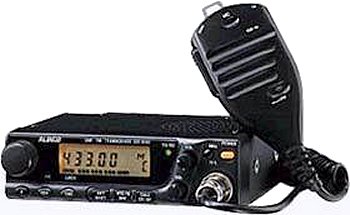

| Type: | Amateur UHF Transceiver |
| Frequency Range: | 430-440 MHz |
| Modes: | FM |
| RF Power output: | Hi: 35 W Lo: 5 W |
| Sensitivity: | N/A |
| Selectivity: | 6 KHz (-6 dB), 15 KHz (-60 dB) |
| Image rejection: | 60 dB |
| Voltage: | 13.8 VDC |
| Current Drain: | RX: 0.8 A TX: Max 10 A |
| Aerial Input: | 50 ohms |
| Dimensions (W*H*D): | 140*40*154 mm |
| Weight: | 860 gr |
| Manufactured: | Japan, 199x-199x |
| Other: | 100 memories |
