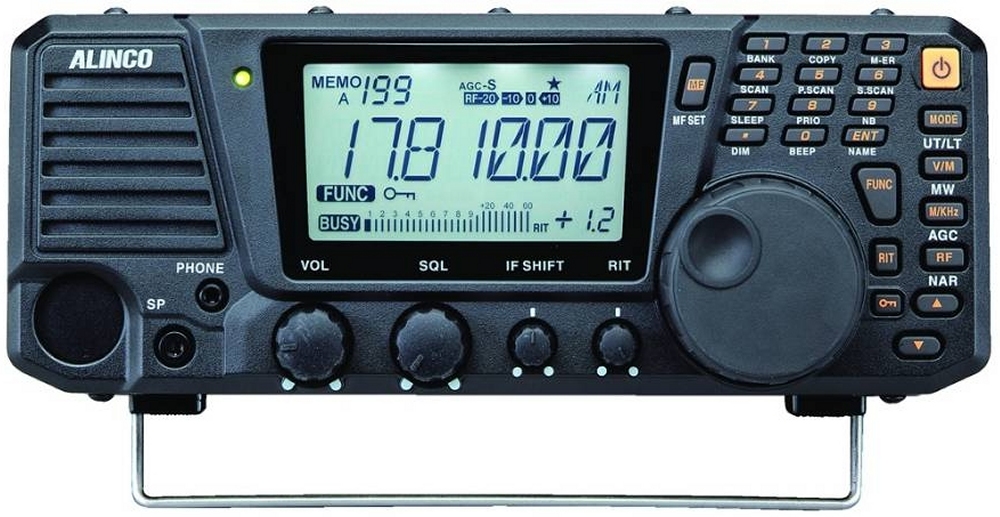

Alinco DX-R8E
| Type: |
HF Receiver |
| Frequency Range: |
0.15-35 MHz |
| Modes: |
AM/FM/SSB/CW |
| Memories: |
600 (3x Banks) |
| Sensitivity: |
SSB: (0.15 to 1.8MHz) 0dBu(1uV)
CW: (1.8 to 30MHz) -12dBu(0.25uV)
AM: (0.15 to 1.8MHz) +20dBu(10uV)
AM: (1.8 to 30MHz) +6dBu(2uV)
FM: (28 to 30MHz) -6dBu(0.5uV) |
| Selectivity: |
SSB, CW, AM(narrow): 2.4KHz/-6dB 4.5KHz/-60dB
AM, FM: 6KHz/-6dB 18KHz/-60dB
-6dB: 6KHz or more
-60dB: 16KHz or less (NFM) |
| Image rejection: |
More than 70dB |
| Voltage: |
13.8 VDC |
| Current Drain: |
MAX: 1.0 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions: |
240(W) x 94(H) x 255(D) mm |
| Weight: |
4.1 kg |
| Manufactured: |
20xx-20xx |
