| Type: |
Amateur HF Transceiver |
| Frequency Range: |
10-160 m + WARC and 5.3 MHz (USA) |
| Modes: |
AM/FM/SSB/CW |
| RF Power output: |
Hi: 100 W (AM 40 W)
Lo: 10 W (AM 4 W)
S-Lo: 1 W (AM 0.4 W) |
| Sensitivity: |
AM 0.15-1.8 MHz: 10 uV
AM 1.8-30 MHz: 2 uV
FM 28-30 MHz: 0.5 uV
SSB 0.15-1.8 MHz: 1 uVCW 1.8-30 MHz: 0.25 uV |
| Selectivity: |
AM Narrow: 2.4 KHz (-6 dB), 4.5 KHz (-60 dB)
AM/FM: 6 KHz (-6 dB), 18 KHz (-60 dB)
SSB/CW: 2.4 KHz (-6 dB), 4.5 KHz (-60 dB) |
| Image rejection: |
70 dB |
| Voltage: |
11.7 - 15.8 VDC |
| Current Drain: |
RX: 0.7 - 1 A
TX: Max 20 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
240*94*255 mm |
| Weight: |
4.1 Kg |
| Manufactured: |
2009-20xx |
| Other: |
600 memories with scanning. Built-in keyer with full QSK

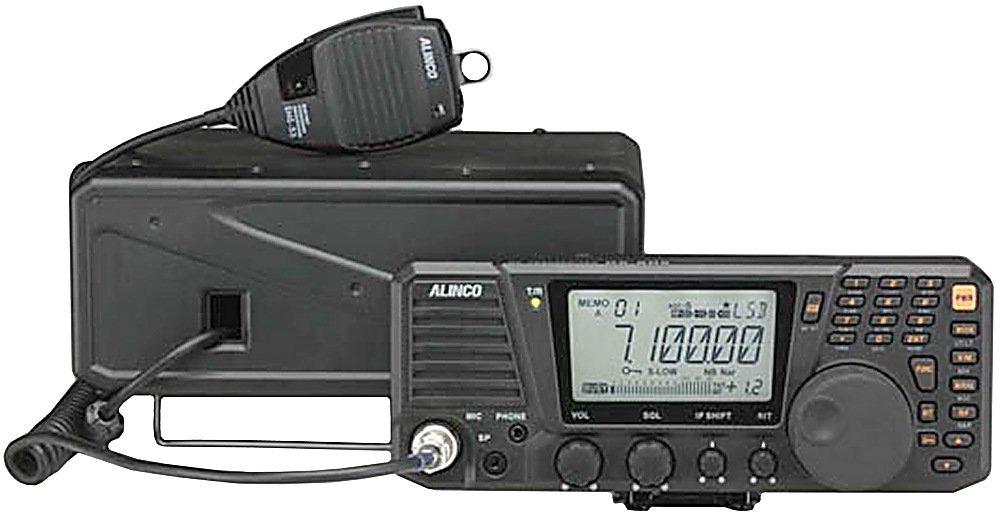

CTCSS/PL for 10 m FM repeater access. Detachable front panel |
