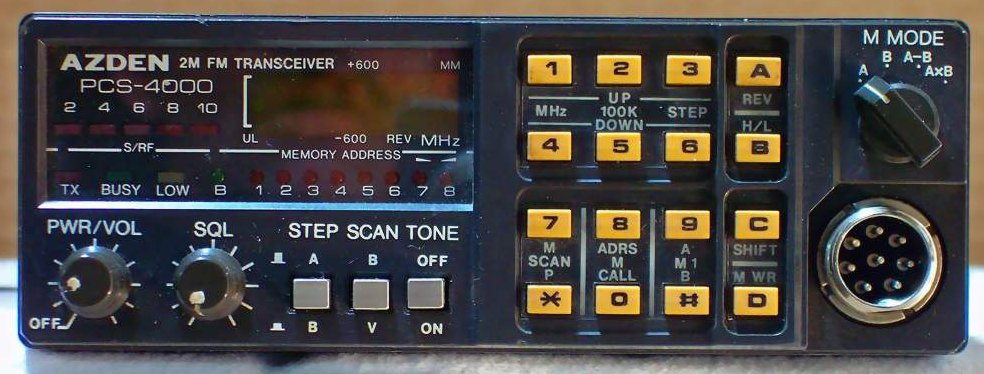

Azden PCS-4000
| Type: |
Amateur VHF Transceiver |
| Frequency Range: |
144-148 MHz (12.5 KHz steps) |
| Mode: |
FM |
| RF Power Output: |
Hi: 25 W
Lo: 5 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image Rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: Max ? mA
TX: Max 5 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
140*50*172 mm |
| Weight: |
? Kg |
| Manufactured: |
1983-19xx |
| Other: |
16 memories |
| Related Documents: |
User Manual (2.5 MB) |
|
