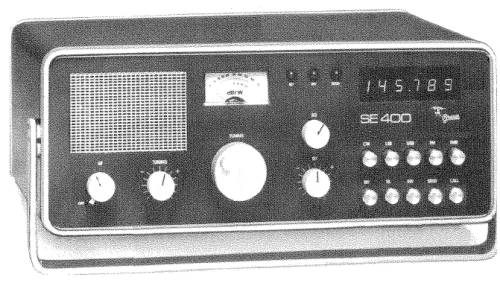

Braun SE-400
| Type: |
Amateur VHF transceiver |
| Frequency Range: |
144-146 MHz |
| Mode: |
FM/SSB/CW |
| RF Power output: |
Max 10 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC or Mains |
| Current Drain: |
RX: Max 1.4 A
TX: Max 2.9 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
307*117*260 mm |
| Weight: |
7.3 Kg |
| Manufactured: |
West Germany, 197x-197x (Mid-seventies) |
| Other: |
|
| Related Documents: |
User Manual (5.3 Mb) |
|
