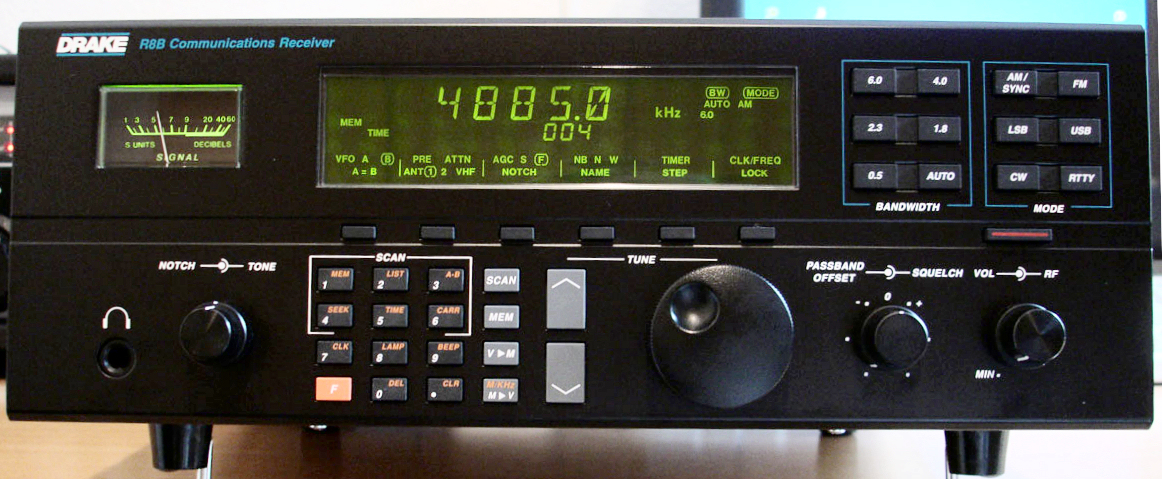

Drake R8B
| Type: |
HF (/VHF) receiver |
| Frequency Range: |
0.1-30 MHz
(RX 35-55 / 108-174 MHz with optional converter) |
| Mode: |
AM/FM/SSB/CW/RTTY + synchro-AM |
| Memories: |
100 |
| Voltage: |
11-16 VDC or Mains |
| Current Drain: |
Max 2 A |
| Aerial Input: |
Ant-1: 50 ohms, Ant-2: 50/500 ohms |
| Dimensions (W*H*D): |
334*134*330 mm |
| Weight: |
5.9 Kg |
| Manufactured: |
USA: 1997-1998 |
| Other: |
RS232C interface |
| Related Documents: |

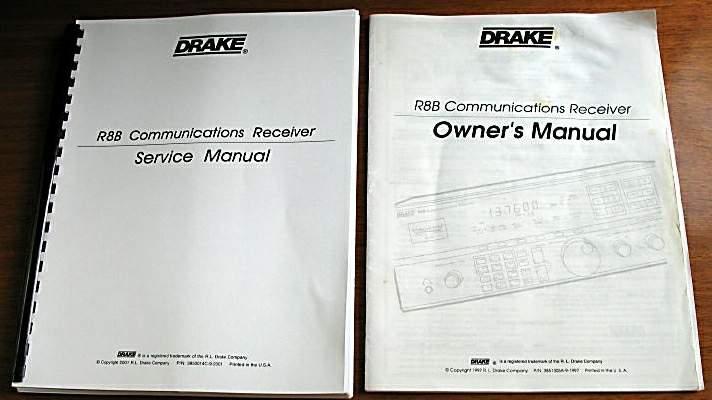

User Manual (698 Kb) |
 |
