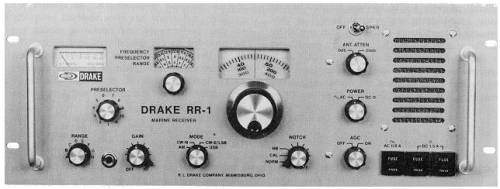

Drake RR-1
| Type: |
HF receiver |
| Frequency Range: |
0.15-0.535 / 1.5-4 / 4-4.5 / 6-6.5 / 8-9 / 12-13.5 / 16-17.5 / 22-23 / 25-26 MHz |
| Mode: |
AM/SSB/CW |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
24 VDC or Mains |
| Current Drain: |
Max ? A |
| Aerial Input: |
Below 4 MHz = Hi-Z
Above 4 MHz = 50 ohms |
| Dimensions (W*H*D): |
482*178*279 mm |
| Weight: |
6.4 Kg |
| Manufactured: |
USA: 1991-1997 |
| Other: |
4 extra 500 KHz ranges with optional XTAL's |
| Related Documents: |
|
|
