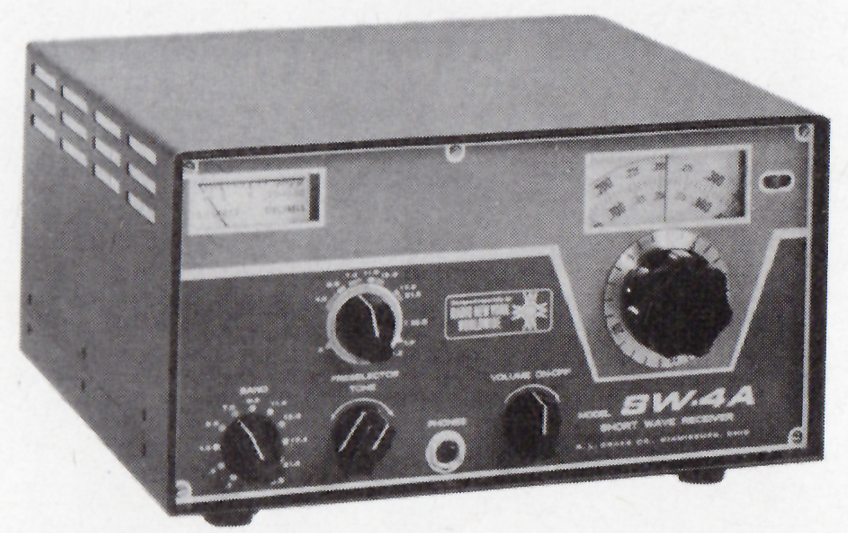

Drake SW-4A
| Type: |
HF receiver |
| Frequency Range: |
0.15-26.05 MHz (With Gaps) |
| Mode: |
AM |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
Mains |
| Current Drain: |
Max ? mA |
| Aerial Input: |
52 ohms |
| Dimensions (W*H*D): |
273 x139 x 311 mm |
| Weight: |
? Kg |
| Manufactured: |
USA, 1967-1974 |
| Other: |
Three optional 500 KHz ranges between 1,5-30 MHz
with the exception of 5.0-6.0 MHz
Transistor/tube hybrid |
| Related Documents: |
Price When New: $289-$335 |
|
