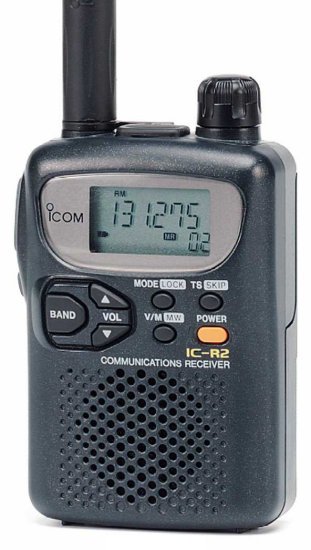

Icom IC-R2
| Type:
|
HF/VHF/UHF Receiver/Scanner |
| Frequency Range: |
0.495-1310 MHz
5 / 6.25 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 KHz steps |
| Modes: |
AM/FM/WFM |
| Sensitivity: |
AM 0.5-25 MHz: 1uV (10 dB S/N)
FM 25-900 MHz: 0.32 uV (10 dB S/N)
FM 900-1300 MHz: 0.5 uV (10 dB S/N) |
| Selectivity: |
N/A |
| Image rejection: |
45 dB |
| Voltage: |
? VDC |
| Current Drain: |
95-170 mA |
| Aerial Input: |
50 ohms, SMA |
| Dimensions (W*H*D): |
58*86*27 mm |
| Weight: |
170 gr |
| Manufactured: |
199x-200x (discontinued) |
| Other: |
400 memories |
| Related Documents: |
User Manual (850 KB)
Service manual (1.1 MB) |
|
