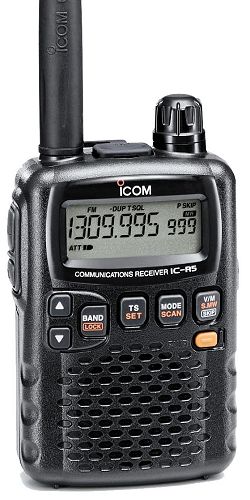

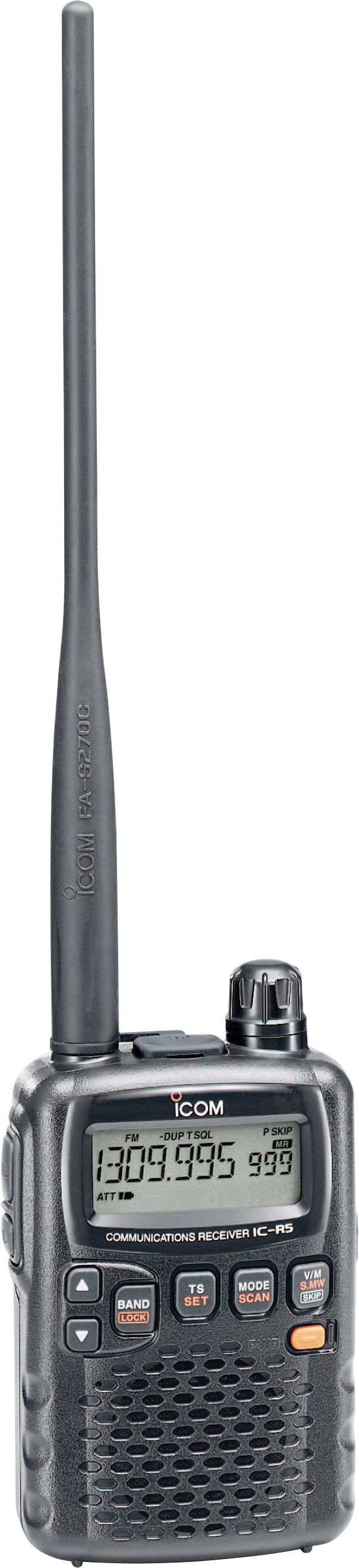

Icom IC-R5
| Type: |
HF/VHF/UHF Receiver/Scanner |
| Frequency Range: |
0.150-1310 MHz |
| Modes: |
AM/FM/WFM |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
2.4-3 VDC (2*R6) or max 6 VDC external |
| Current Drain: |
Max ? mA |
| Aerial Input: |
50 ohms, SMA |
| Dimensions (W*H*D): |
58*86*27 mm |
| Weight: |
185 gr |
| Manufactured: |
2002-200x |
| Other: |
1250 memories. Ferrite bar antenna for MW.
CTCSS & DTCS. PC-programmable via USB.
|
| Related Documents: |
User Manual (3 MB) |
|
