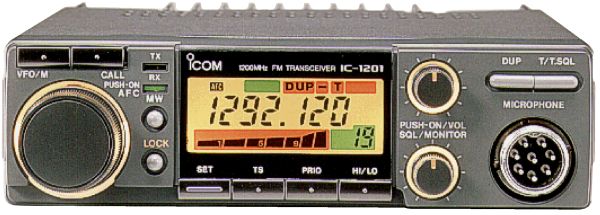

Icom IC-1201

Type: Amateur UHF Transceiver
Frequency Range: 1260-1300 MHz
Modes: FM
RF Power output: Hi: 10 W
Lo: 1 W
Sensitivity: N/A
Selectivity: N/A
Image rejection: N/A
Voltage: 13.8 VDC
Current Drain: RX: Max ? mA
TX: Max 6 A
Aerial Input: 50 ohms, N
Dimensions (H*W*D): 40*140*200 mm
Weight: 1.5 Kg
Manufactured: 19xx-19xx
Other:
Related Documents:
