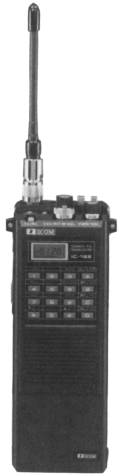

Icom IC-12E
| Type:
|
Amateur UHF Transceiver |
| Frequency Range: |
1260-1300 MHz |
| Modes: |
FM |
| RF Power output: |
Hi: 1 W
Lo: 100 mW |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
7.2-13.2 VDC |
| Current Drain: |
RX: 65-250 mA
TX: Max 900 mA |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
65*171*36 mm (with BP-3) |
| Weight: |
610 gr (with BP-3) |
| Manufactured: |
1987-19xx |
| Other: |
|
| Related Documents: |
|
|
