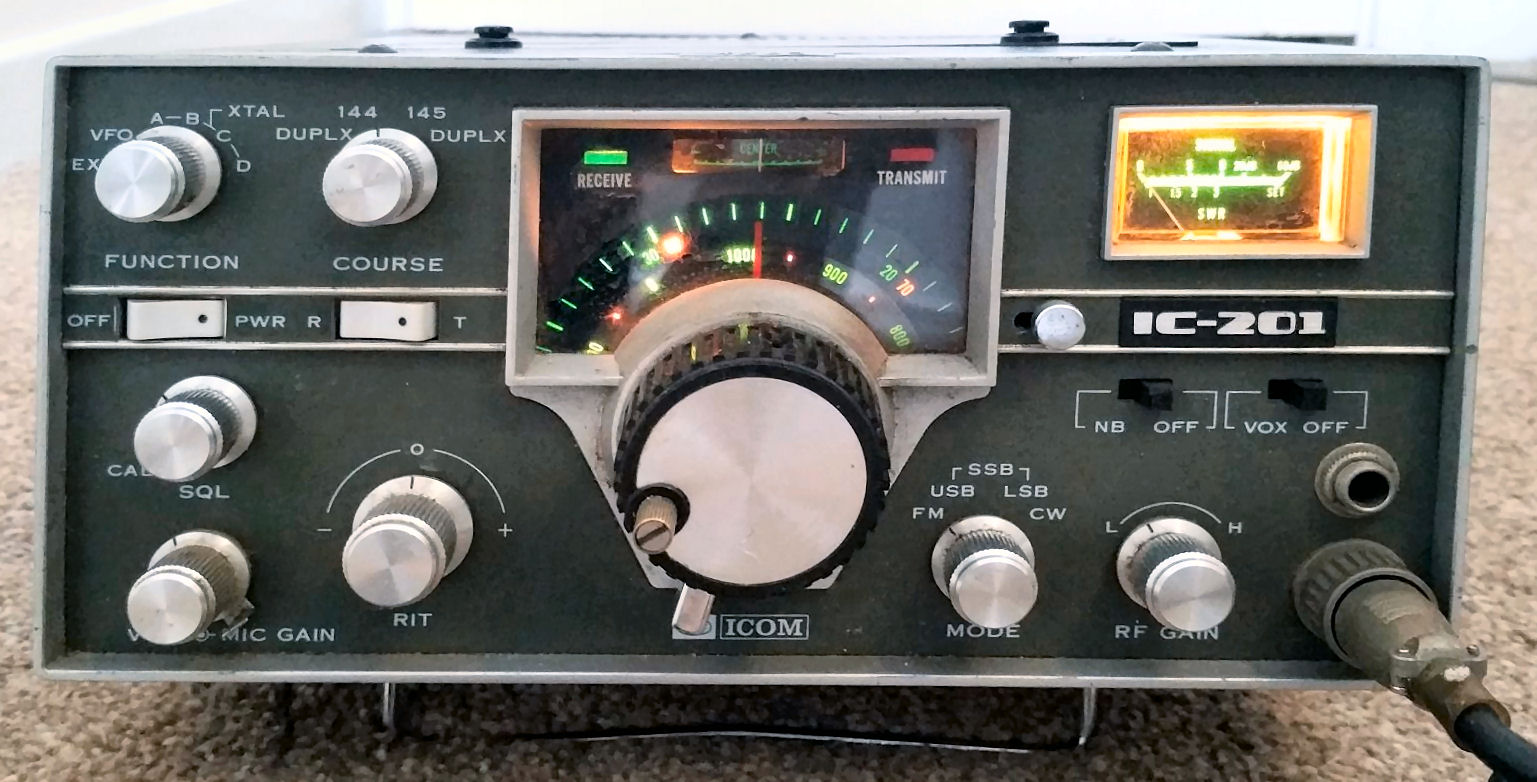

Icom IC-201
| Type:
|
Amateur VHF Transceiver |
| Frequency Range: |
144-146 MHz |
| Modes: |
FM/SSB/CW |
| RF Power output: |
0.5-10 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC or Mains |
| Current Drain: |
RX: Max ? A
TX: Max ? A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
230*11*260 mm |
| Weight: |
7.2 Kg |
| Manufactured: |
Japan, 1976-1979 |
| Other: |
|
| Related Documents: |
User Manual (3.0 MB)
Schematic (2.24 MB) |
 |
