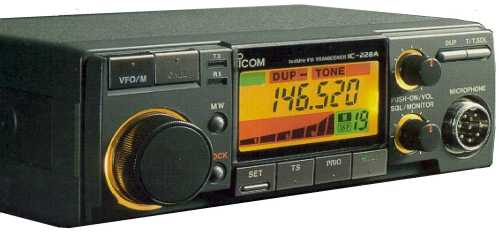

Icom IC-228A
| Type:
|
Amateur VHF Transceiver |
| Frequency Range: |
TX: 140.1-150 MHz
RX: 138-174 MHz |
| Modes: |
FM |
| RF Power output: |
Hi: 25 W
Lo: 5 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: Max ? A
TX: Max 6 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
140*50*137 mm |
| Weight: |
? Kg |
| Manufactured: |
19xx-19xx |
| Other: |
20 memories |
| Related Documents: |
Instruction Manual (1.55 MB) |
|
