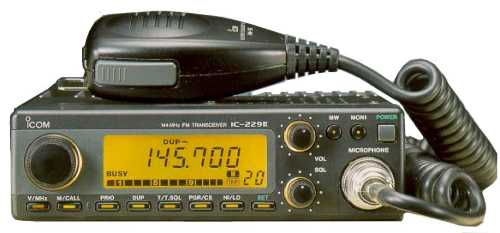

Icom IC-229E
| Type:
|
Amateur VHF Transceiver |
| Frequency Range: |
TX: 144-146 MHz
RX: 136-174 MHz |
| Modes: |
FM |
| RF Power output: |
Hi: 25 W
Lo3: 10 W
Lo2: 5 W
Lo1: 1 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: Max 0.5 A
TX: Max 6 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
140*40*105 mm |
| Weight: |
750 gr |
| Manufactured: |
1990-19xx |
| Other: |
|
| Related Documents: |
|
|
