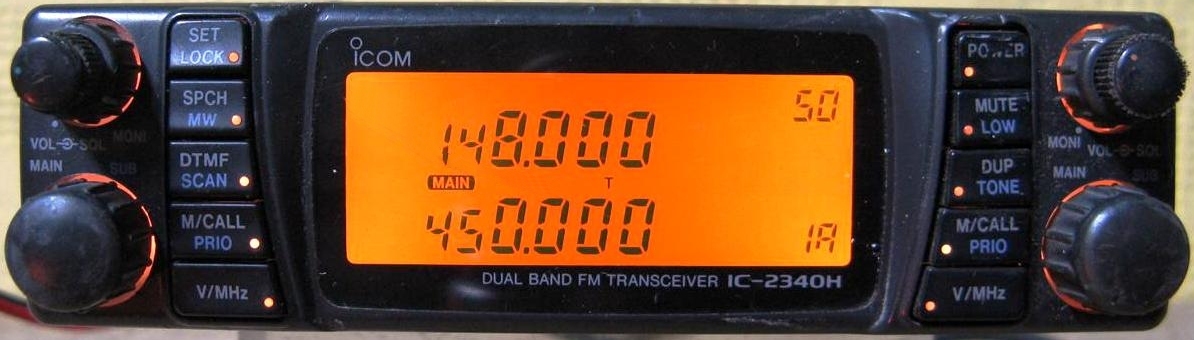

Icom IC-2340H
| Type:
|
Amateur VHF/UHF Transceiver |
| Frequency Range: |
144-146 / 430-440 MHz (Europe)
144-148 / 440-450 MHz (USA) |
| Modes: |
FM |
| RF Power output: |
Hi: 45/35 W
Mid: 10/10 W
Lo: 5/5 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: Max ? A
TX: Max ? A |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
140*40*165 mm |
| Weight: |
1.3 Kg |
| Manufactured: |
1994-19xx |
| Other: |
Twin RX |
