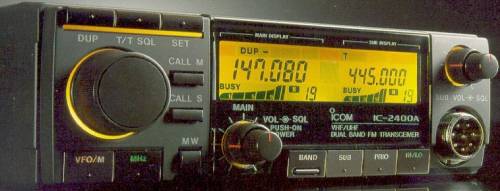

Icom IC-2400A

Type: Amateur VHF/UHF Transceiver
Frequency Range: TX: 140-150 / 440-450 MHz
RX: 138-174 / 440-450 MHz
Modes: FM
RF Power output: Hi: 45/35 W
Lo: 5/5 W
Sensitivity: N/A
Selectivity: N/A
Image rejection: N/A
Voltage: 13.8 VDC
Current Drain: RX: ? mA
TX: Max 10.5 A
Aerial Input: 50 ohms
Dimensions (W*H*D): 150*50*195 mm
Weight: ? Kg
Manufactured: 198x-19xx
Other: 40 memories. Twin RX
Related Documents: User Manual (4.9 MB)
