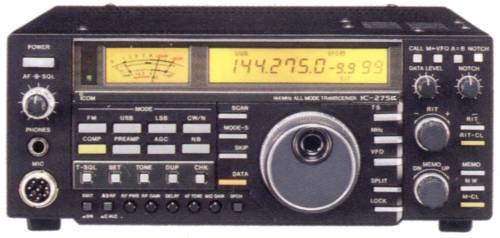

Icom IC-275E
| Type:
|
Amateur VHF Transceiver |
| Frequency Range: |
TX: 144-146 MHz
RX: 138-174 MHz |
| Modes: |
FM/SSB/CW |
| RF Power output: |
2.5-25 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC or Mains |
| Current Drain: |
RX: 0.9-1 A
TX: Max 6 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
241*95*239 mm |
| Weight: |
6.2 Kg |
| Manufactured: |
1987-19xx |
| Other: |
99 memories. CI-V |
| Related Documents: |
User Manual (5.8 Mb) |
|
