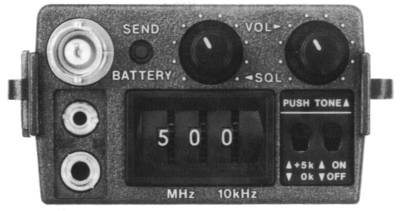

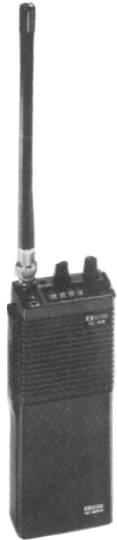

Icom IC-2A
| Type:
|
Amateur VHF Transceiver |
| Frequency Range: |
144-148 MHz (5 KHz steps) |
| Modes: |
FM |
| RF Power output: |
Hi: 1.5 W
Lo: 0.15 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
8.4 VDC |
| Current Drain: |
RX: 20-130 mA
TX: 220-550 mA |
| Aerial Input: |
50 ohms, BNC |
| Dimensions (W*H*D): |
65*117*35 mm (without battery pack) |
| Weight: |
490 gr (with BP3) |
| Manufactured: |
19xx-19xx |
| Other: |
DTMF |
| Related Documents: |
User Manual (701 KB) |
|
