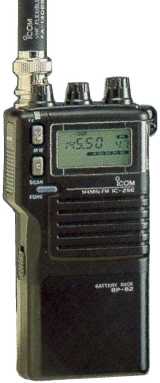

IC-2SE

Type: Amateur VHF Transceiver
Frequency Range: TX: 144-146 MHz
RX: 138-174 MHz
Modes: FM
RF Power output: Hi: 5 W
Lo3: 3.5 W
Lo2: 1.5 W
Lo1: 500 mW
Sensitivity: N/A
Selectivity: N/A
Image rejection: N/A
Voltage: 13.2 VDC
Current Drain: RX: Max ? mA
TX: Max ? A
Aerial Input: 50 ohms, BNC
Dimensions (W*H*D): 49*104*33 mm (with BP-82)
Weight: 270 gr (with BP-82)
Manufactured: 1989-19xx
Other:
Related Documents:
