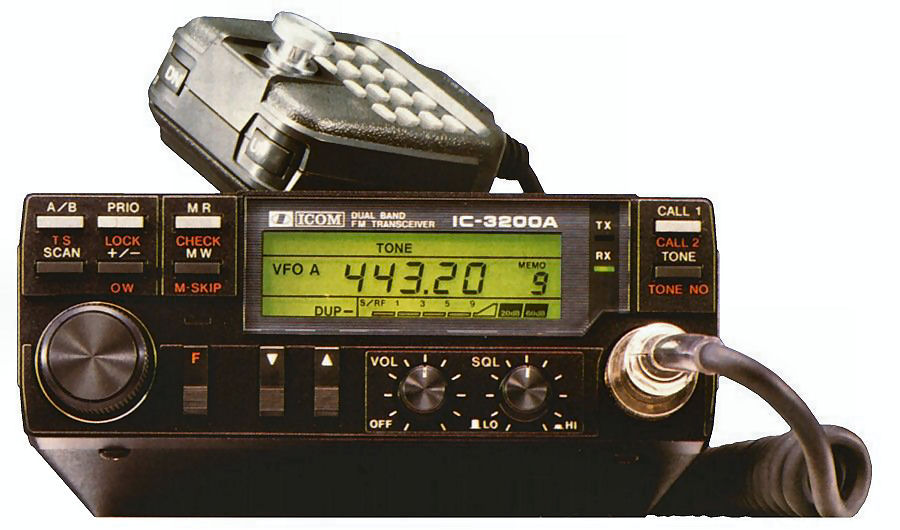

Icom IC-3200A
| Type:
|
Amateur VHF/UHF Transceiver |
| Frequency Range: |
140-150 / 440-450 MHz
(5 / 15 KHz steps) |
| Modes: |
FM |
| RF Power output: |
Hi: 25/25 W
Lo: 5/5 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: ? mA
TX: Max ? A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
140 x 50 x 207 mm |
| Weight: |
1.9 Kg |
| Manufactured: |
Japan, 1985-198x (Discontinued) |
| Other: |
10 memories. CTCSS/PL Encoder |
