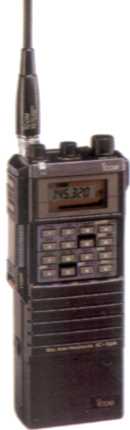

Icom IC-32E
| Type:
|
Amateur VHF/UHF Transceiver |
| Frequency Range: |
144-146 / 430-440 MHz |
| Modes: |
FM |
| RF Power output: |
Hi: 5.5/5 W
Lo: 1/1 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
7.2-13.2 VDC battery pack or 12-15 VDC external |
| Current Drain: |
RX: 10-250 mA
TX: Max 2.2 A |
| Aerial Input: |
50 ohms, BNC |
| Dimensions (W*H*D): |
65*159*35 mm (with BP-3) |
| Weight: |
510 gr (with BP-3) |
| Manufactured: |
1988-19xx |
| Other: |
20 memories |
