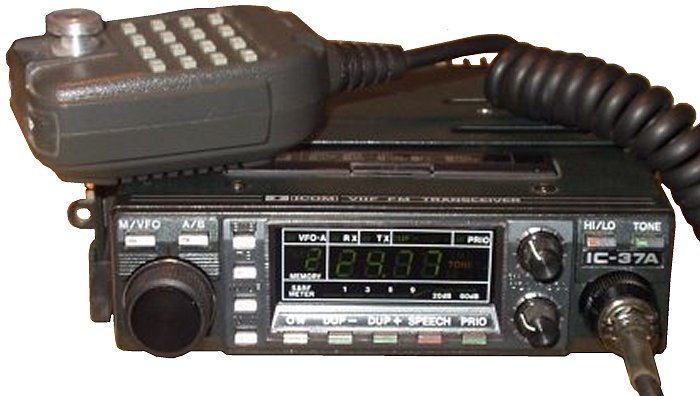

Icom IC-37A
| Type:
|
Amateur VHF Transceiver |
| Frequency Range: |
220-225 MHz |
| Modes: |
FM |
| RF Power output: |
Hi: 25 W
Lo: 5 W |
| Sensitivity: |
Less than 0.2 uV for 12 dB SINAD |
| Selectivity: |
More than 15 KHz (-6 dB), less than 30 KHz (-60 dB) |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: 0.5-0.7 A
TX: 3-6.5 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
140*38*177 mm |
| Weight: |
1.2 Kg |
| Manufactured: |
198x-198x |
| Other: |
|
