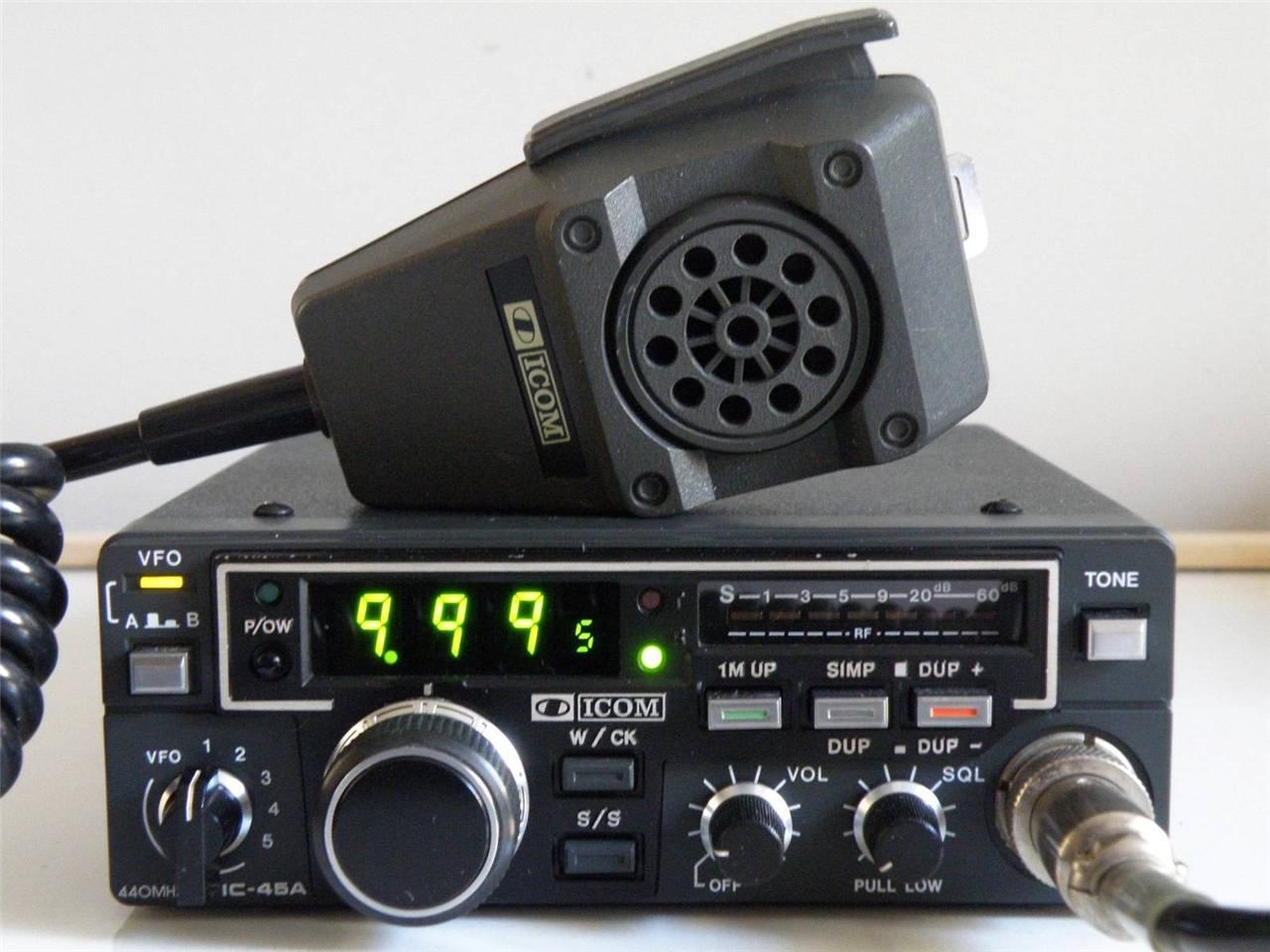

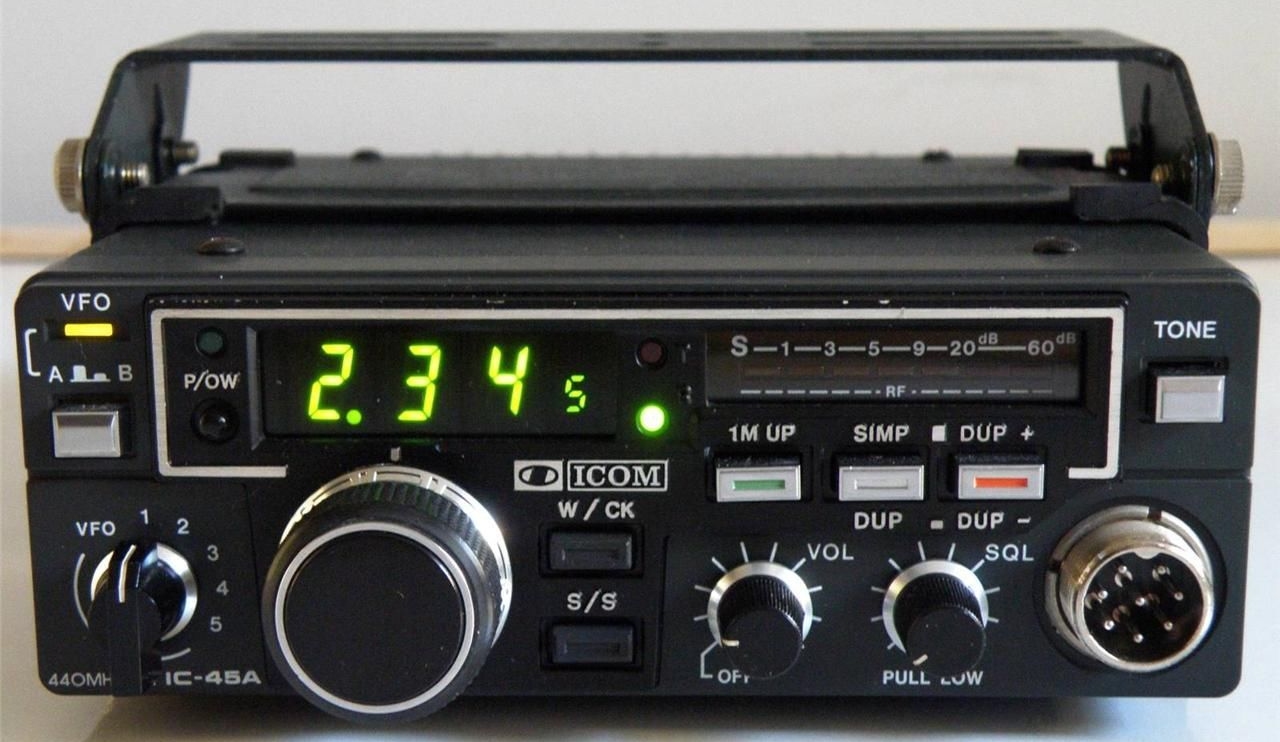

Icom IC-45A

Type: Amateur UHF Transceiver
Frequency Range: 440-450 MHz (5/25 KHz steps)
Modes: FM
RF Power output: Hi: 10 W
Lo: 1 W
Sensitivity: <0.3 uV (12 dB SINAD)
Selectivity: 15 KHz (-6 dB), 30 KHz (-60 dB)
Image rejection: >60 dB
Voltage: 13.8 VDC
Current Drain: RX: 500-700 mA
TX: 1.7-3.5 A
Aerial Input: 50 ohms, N
Dimensions (W*H*D): 140*50*177 mm
Weight: 1.5 Kg
Manufactured: Japan, 1983-19xx
Other: 5 memories
Related Documents: User Manual (3.7 MB)
