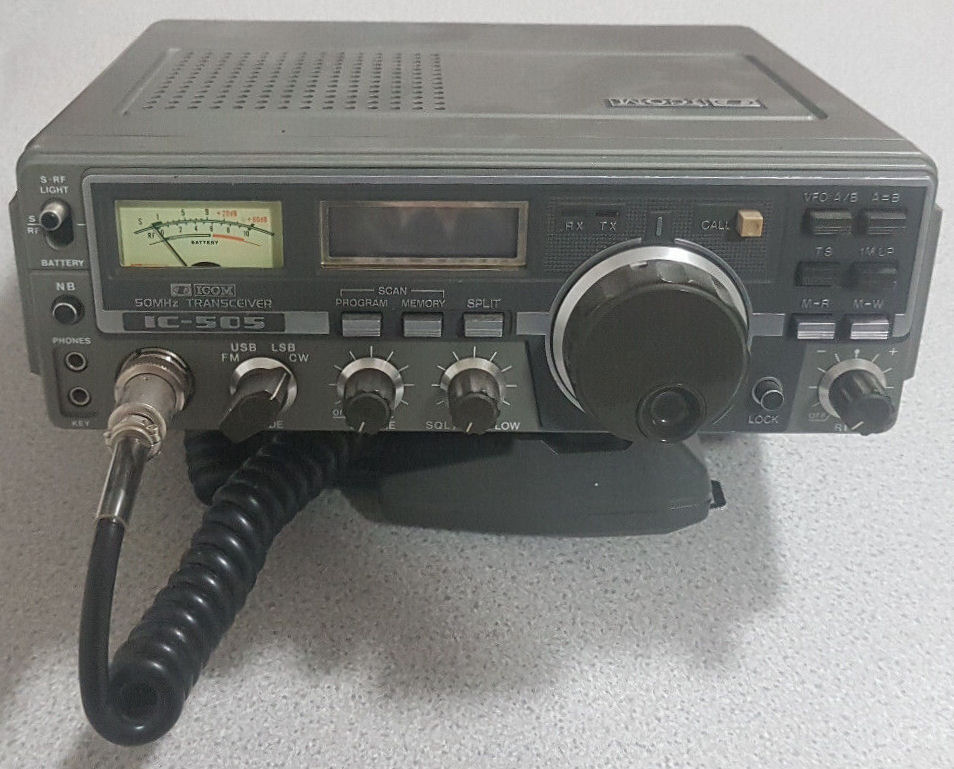

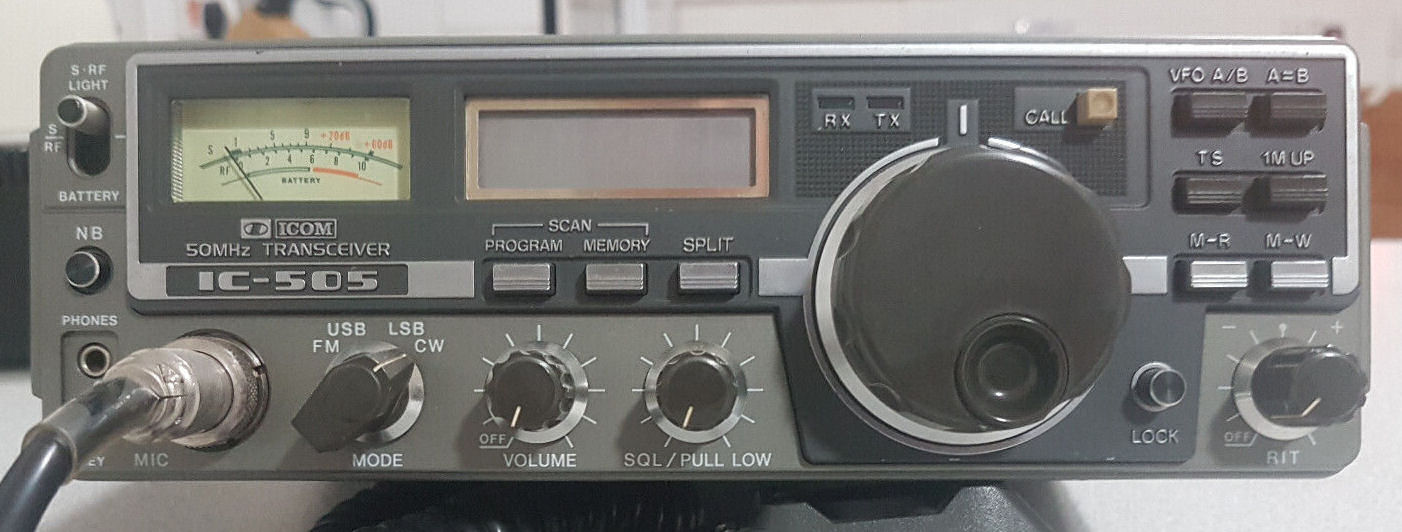

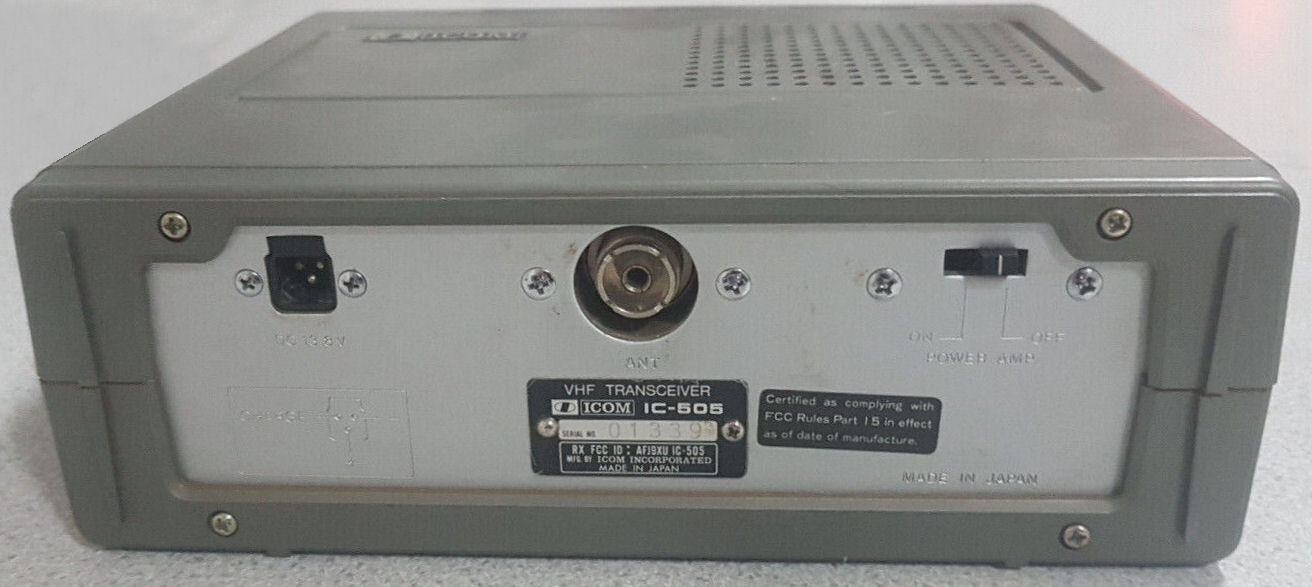

Icom IC-505
| Type: |
Amateur VHF Transceiver |
| Frequency Range: |
50-54 MHz |
| Modes: |
All-mode |
| RF Power output: |
3 W @ 6 VDC
10 W @ 13.8 VDC |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
6 VDC (4*LR20) or 13.8 VDC external |
| Current Drain: |
RX: 300 mA
TX: Max 2.9 A (10 W) |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
230*76*189 mm |
| Weight: |
3.2 Kg (with batteries) |
| Manufactured: |
Japan, 19xx-19xx |
| Other: |
|
| Related Documents: |
|
 |
