| Type: |

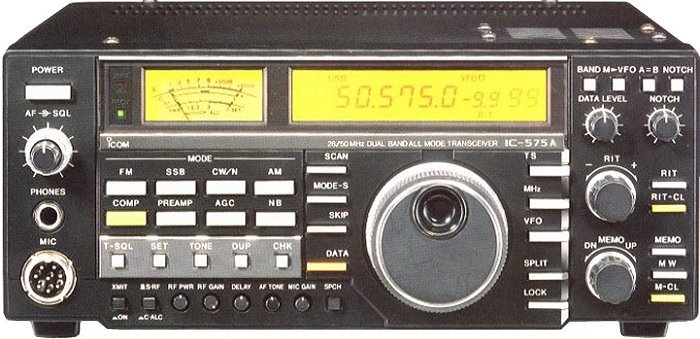

Amateur HF/VHF Transceiver |
| Frequency Range: |
TX: 28-29.7/50-54 MHz
RX: 26-56 MHz |
| Modes: |
AM/FM/SSB/CW |
| RF Power output: |
AM: 1-4 W
FM/SSB/CW: 1-10 W |
| Sensitivity: |
AM: <1 uV (10 dB S/N)
FM: <0.25 uV (12 dB SINAD)
SSB/CW: <0.13 uV (10 dB S/N) |
| Selectivity: |
AM: 6 KHz (-6 dB), 15 KHz (-60 dB)
FM: 15 KHz (-6 dB), 30 KHz (-60 dB)
SSB/CW: 2.3 KHz (-6 dB), 4 KHz (-60 dB) |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC or Mains |
| Current Drain: |
RX: 1.4-1.6 A
TX: Max 5.2 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
241 x 95 x 239 mm |
| Weight: |
6.1 Kg |
| Manufactured: |
Japan, 1988-199x (Discontinued) |
| Other: |
99 Memories. |
| Related Documents: |
User Manual (2.15 MB) |
