| Type:
|

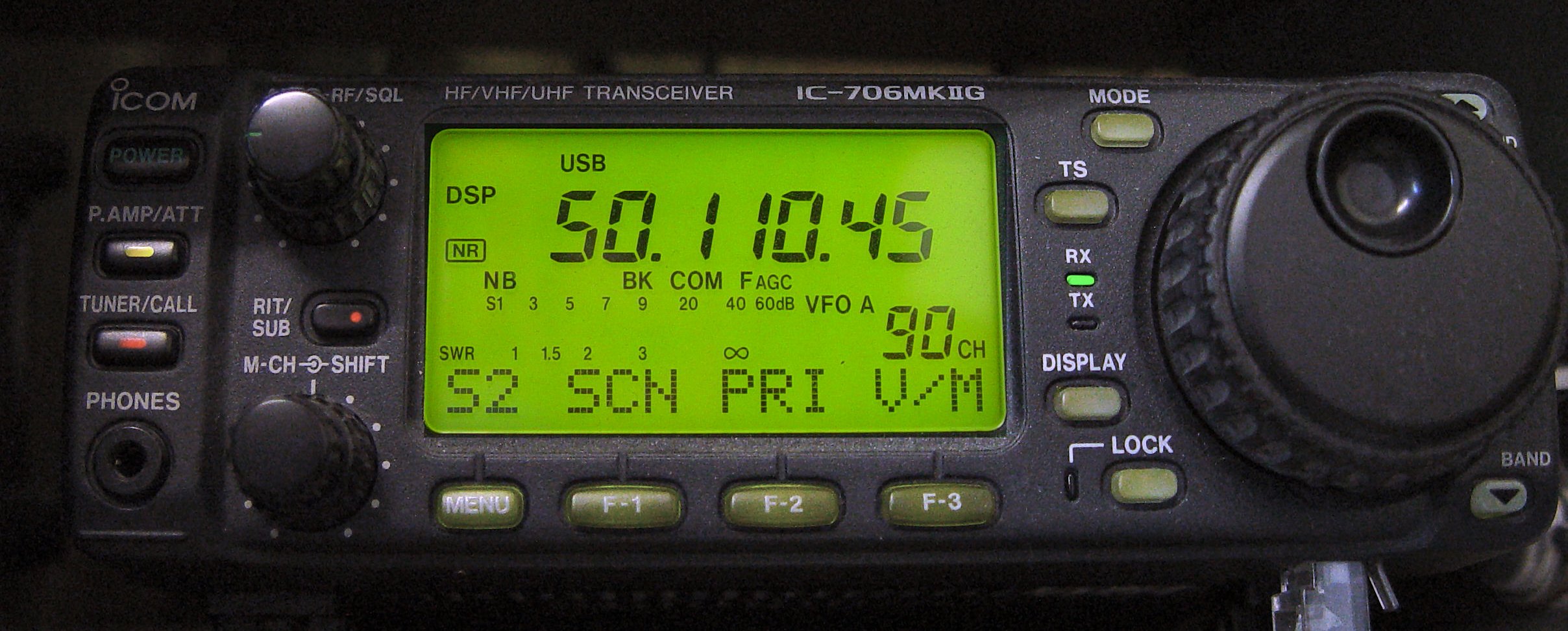

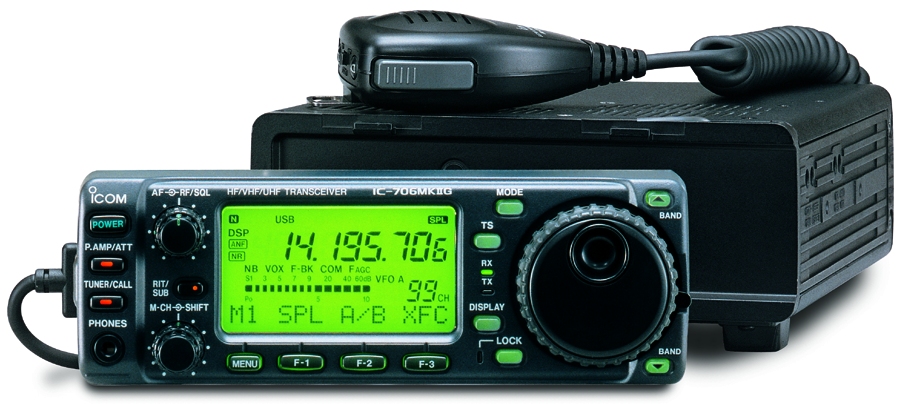

Amateur HF/VHF/UHF Transceiver |
| Frequency Range: |
TX: 10-160m + WARC / 50-54 / 144-146 / 430-440 MHz (Europe)
TX: 10-160m + WARC / 50-54 / 144-148 / 430-450 MHz (USA)
RX: 0.03-200 / 400-470 MHz all-mode incl WFM |
| Modes: |
AM/FM/SSB/CW/RTTY |
| RF Power output: |
100/100/50/20 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: 1.8-2.0 A
TX: Max 20 A |
| Aerial Input: |
50 ohms, SO-239 (HF/6 m), SO-239 (2 m/70 cm) |
| Dimensions (W*H*D): |
167*58*200 mm |
| Weight: |
2.45 Kg |
| Manufactured: |
1999-200x |
| Other: |
|
| Related Documents: |
User Manual (2.3 MB)
Service manual (13.3 MB)
Brochure (981 Kb) |
